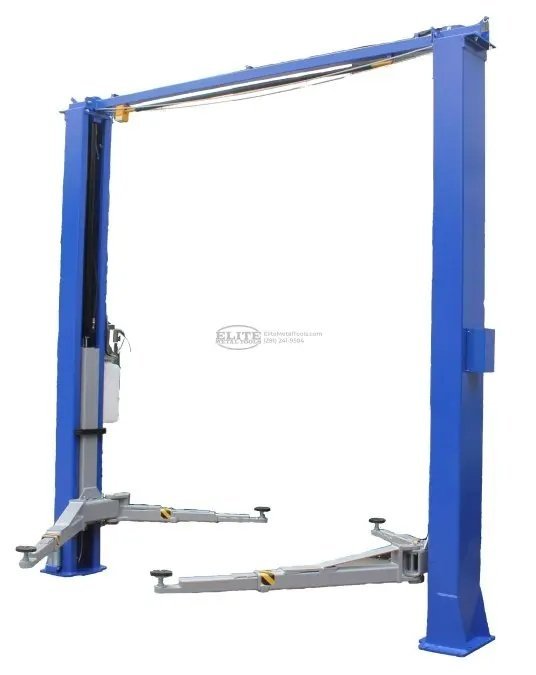

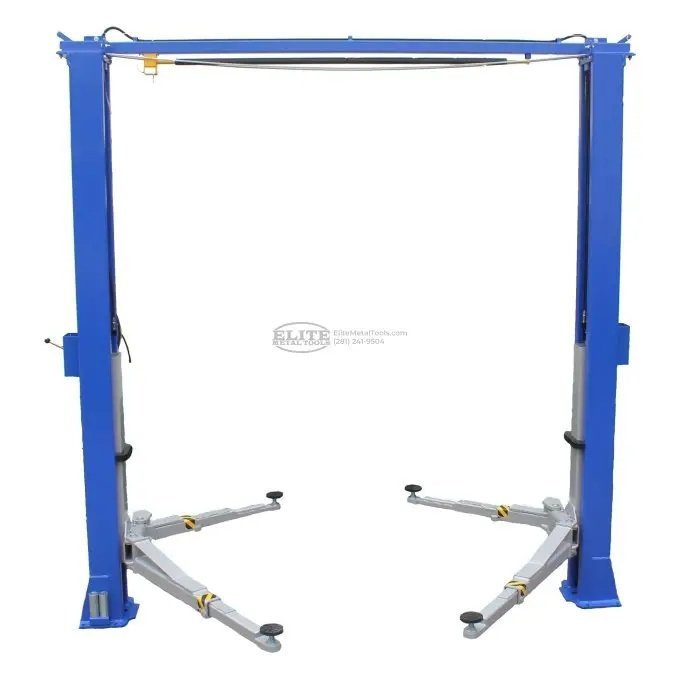

Tuxedo 11,000 lbs Two Post Clear Floor Direct Drive Bi-Symmetric Lift TP11KC-DX

• 11,000 lbs Capacity

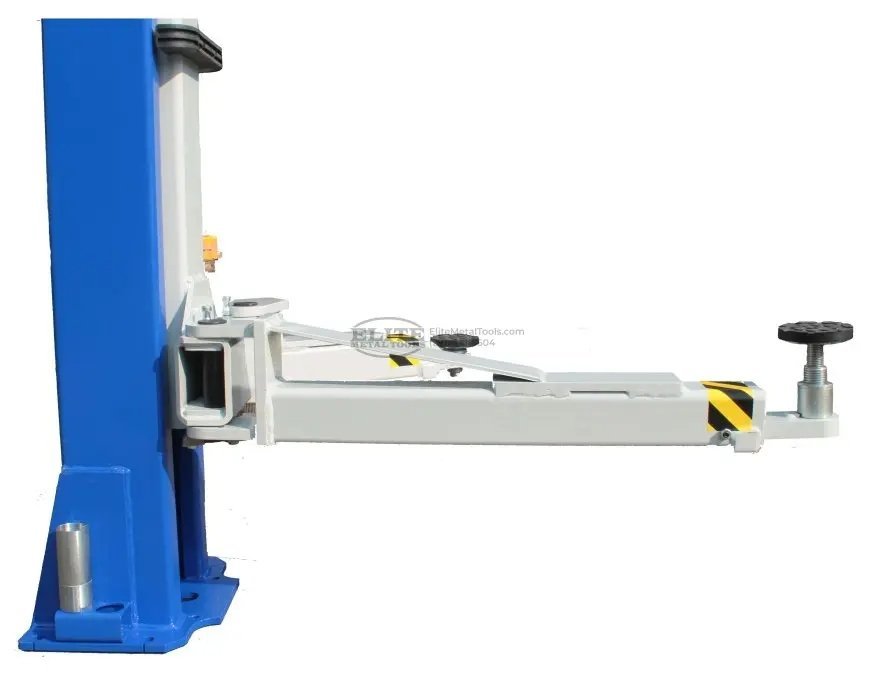

• Bi-Symmetric arm design
• Rubber Door Guards
• 3 Stage Front Arms
• Single Piece Column
• Direct Drive pull Cylinders
• Single Point Lock Release
• Heavy Duty Arm Restraint System
• Spin Up Low Profile Lift Pads
• Stackable Adapters Included
• External hose guards

Specifications

• Lift Model: TP11KC-DX
• Capacity: 11,000 lbs.
• Height Overall: 144″
• Width Overall w/ Power Unit: 145-1/2″
• Max Lift Height: 71″
• Width Between Columns: 116″
• Min. Pad Height: 4″
• Drive Thru Clearance: 104″
• Lifting Speed: 50S
• Asymmetric / Symmetric: Asymmetric/Symmetric
• Clear Floor / Floor Plate: Clear Floor
• Short Arm Reach – min/max: 23″ – 45″
• Long Arm Reach – min/max: 41″ – 57″
• Narrow Bay Setting: NA
• Max Load Per Arm: 2,750 lbs.
• Ship Weight: 1,705 lbs
• Power: 220V – 20 AMP – 1 PH
