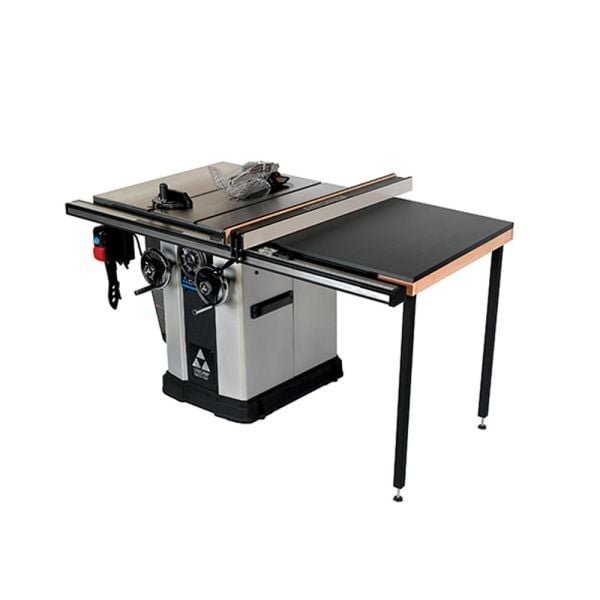

Delta Unisaw 36-L336

Delta 36-L336 Unisaw Features:

• Single-Cast Trunnion System results in incredible vibration control providing continuous smooth operation and dependable accuracy
• Dual Front Cranks make adjusting blade height and blade bevel easy, accurate, and repeatable in all your operations
• The Bevel Dial allows fine tuning of the blade bevel with ease and provides accuracy you can trust to within 1/4°
• The Cabinet Construction consists of a large cast iron base providing stability and solid footing
• Tool-Free Split Guard design allows a true rise-and fall riving knife by using a lever on the front of the saw or inside the throat plate. You can then add the anti-kickback paws and guard to the riving knife without tools
• Table Top provides more surface area to stabilize the product and offers outstanding smoothness and superior ease

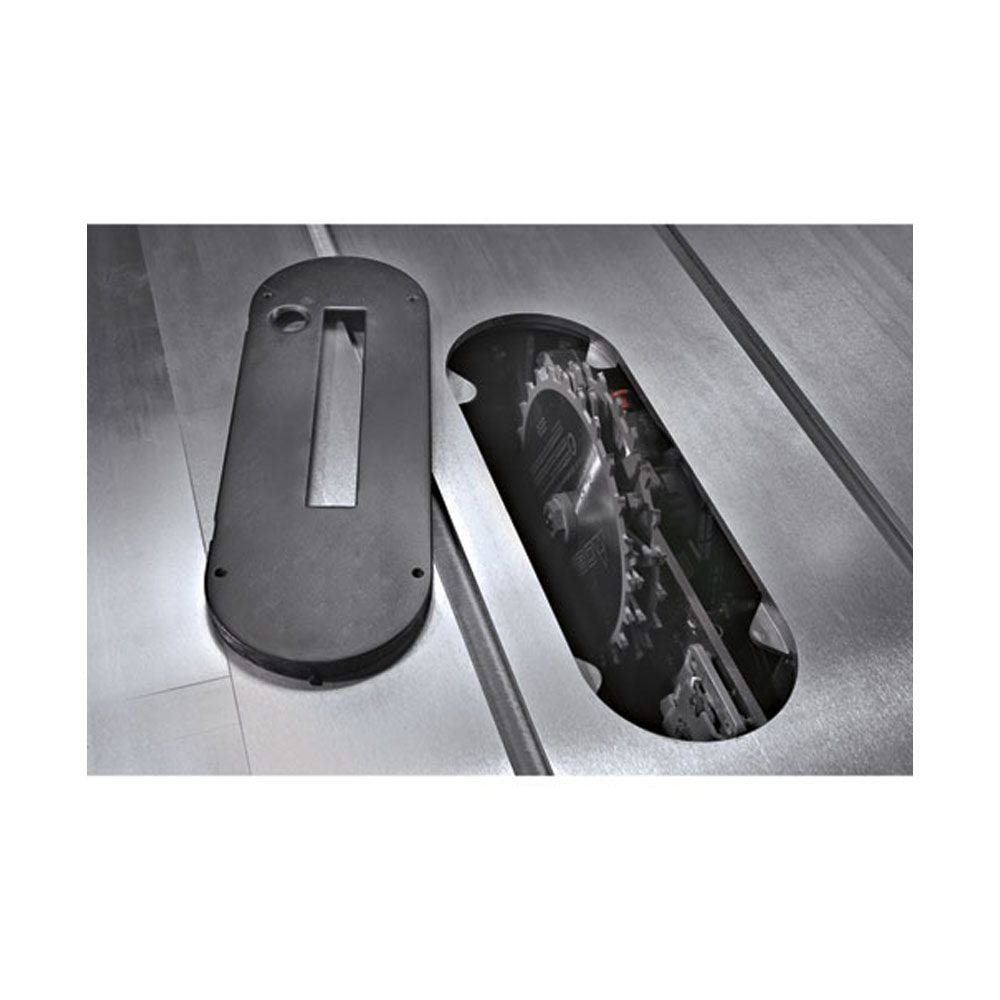

• The Largest Blade Opening in class makes fine tuning your riving knife and blade changes easier than ever
• The Push Button Arbor Lock makes the blade changing process simple and more natural with the use of only 1 wrench
• Large, Easy to Access ON/OFF switch is multi-directional and can be activated from any angle
• Bi-Level Dust Extraction uses only 1 collector hose coupled with a sloping bottom cabinet used to navigate dust, and the new closed bevel gauge provides a sealed interior. This combination results in much higher level of dust collection
• BIESEMEYER® Fence System provides hairline pointer and built-in tape allowing you to make precision set-ups, cut after cut. 9-ply fence faces have improved tolerances like no other as well as an improved cam front lock lever for an over lock with a curved edge
• On-Board Miter Gauge Storage is conveniently located on the side of the cabinet and On-Board Wrench and
• Push Stick Storage is conveniently located beside the switch
• UL Listed

Delta 36-L336 Specifications:

• Horsepower: 3-HP
• Voltage: 230V
• Phase: 1-Phase
• Hertz: 60 Hz
• Arbor Size: 5/8″
• Blade Diameter: 10″
• Blade Speed: 4,300-RPM
• Max Rip To Right Of Blade: 36″
• Max Rip To Left Of Blade: 13-1/2″
• Depth of Cut at 45°: 2-1/8″
• Depth of Cut at 90°: 3-1/8″
• Distance – Front of Table to Center of Blade: 18-1/2″
• Distance – Table in Front of Saw at Max Depth of Cut: 13-1/2″
• Max Width of Dado: 1-1/8″
• Miter Gauge Groove: 3/8″ x 3/4″
• Chip Exhaust Opening: 4″ and 5″
• Table Height: 35″
• Size of Cast Iron Top (with wings only): 31″ x 40″
• Table Size with BIESEMEYER® Table, Wing & Laminate Board: 31″ x 64″
• Length: 71″
• Width: 37″
• Width with Fence on Saw: 46″
• Height: 35″
• Weight: 624 lbs.
